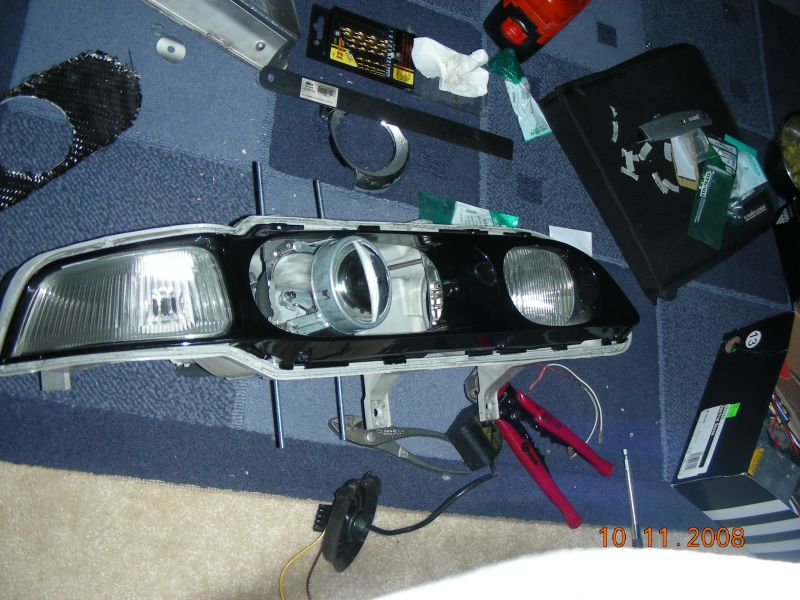

It's been almost 1.5 years since I've started working on these, but I've kinda been occupied working on other things, so they've taken a back seat. Periodically I would look at them, but my main issue is that I want these to look "finished" and not have an open face. That caused a major issue, b/c the light housing wouldn't mount like I wanted in the light reflector from the old bulb assembly (pictured below):

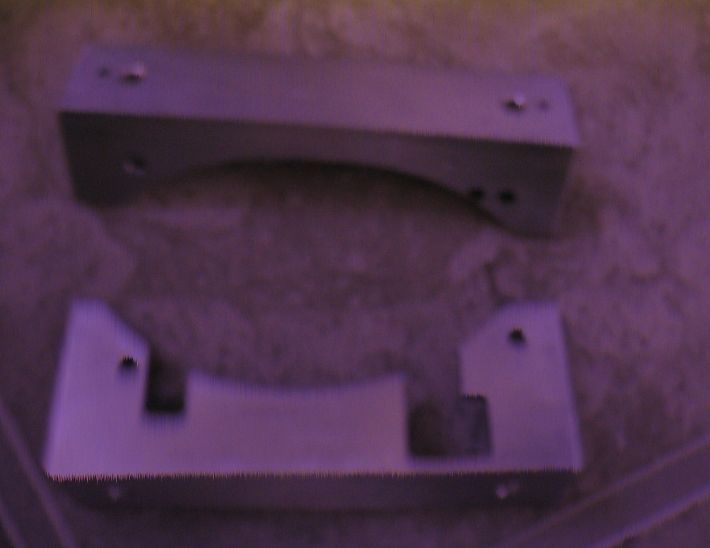

I decided a few months ago that I'd like to get these done before daylight savings time this year, so I've been paying a lot more attention to them. After working on a couple iterations, I decided that the best way to do this would be to mount them straight to the plastic housing. So I talked to my machinist and explained that I wanted a bracket made, and showed him a rough cut of what I wanted. So he whipped out these for me (sorry for the pic, camera's on the fritz, but I borrowed the work cam, so the rest of the pics are better):

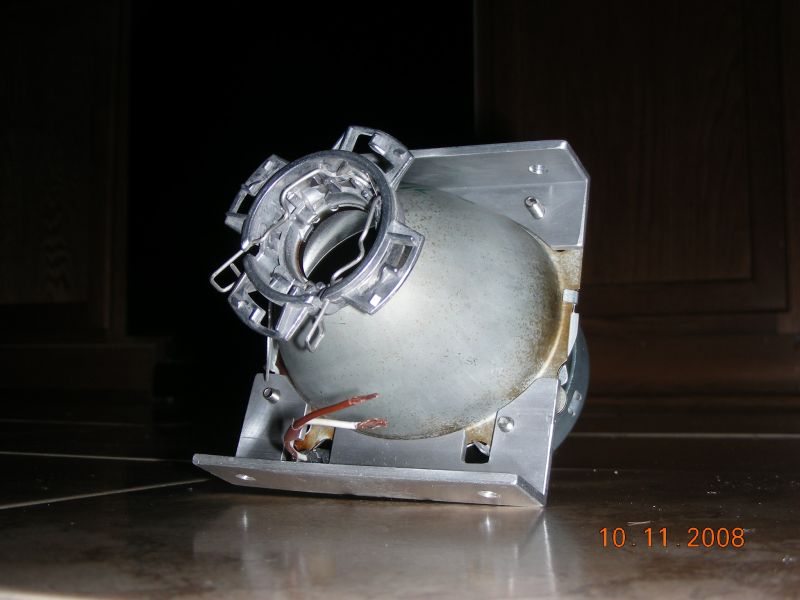

Aluminum brackets. Mounted on the lights, they look like this:







With the help of some washers between the brackets and the housing:





These brackets allowed me to be very precise about this. I'll write up a DIY on the second one after I finish this one. Just have to fabricate another c/f face plate and a piece of aluminum to separate the E55s from the driving light chamber.

So sorry, everyone, I'll be working on getting these complete (this week) before I resume work on the carPC.



antik

Wow - I like that solution. How open to making more brackets will your boy be and how much did they cost ya?

Not that I'm going to be doing this anytime soon... but that's definitely how I'd want to build mine if I did. I'd have a lot more confidence that I could get the silly things level and looking good with that approach.

__________________
~Ben

Canterbury Green '95 Auto L Sedan
ADDCO | MLS | KNUKONCEPTZ | ALPINE | ECLIPSE | JL AUDIO | BOSTON ACOUSTICS

whats77inaname

$100 for all the brackets, including the allen bolts and nuts to mount the lights to them. Kinda pricey, but I take him a lot of work, so for these I didn't pay quite that.

xpressive

So utilizing those brackets eliminates the ability to re-aim the projectors once they are in correct? Because the brackets mount the projectors straight to the headlight housing which doesn't contain any re-aim capabilities. The re-aim hardware is attached to the reflector which is eliminated correct? Thanks! I may just this method for my next retrofit.

__________________


1994 Acura Legend LS Coupe Sherwood Green.
-Alpine 9883 -Alpine Type-R -Alpine PDX -17x8 Flik FTD -225/45/17 Nitto NeoGen Tires -Vogtland Springs.

TSX Projector Retrofit w/ DDM 55W Kit

224K+ running strong

whats77inaname

Correct. I cut large holes into the housing, and use big washers on either side of the housing to give me left right aiming capability. Since the brackets are 90 degree angles, they aim them straight up and down, so you don't have to worry about that.

xpressive

Sweet it's looking great! I love the light output that projectors give, it's so wide and even.. I will be following in your footsteps when I get my hands on a set of JDM's! Looks great! Keep us updated!

__________________


1994 Acura Legend LS Coupe Sherwood Green.
-Alpine 9883 -Alpine Type-R -Alpine PDX -17x8 Flik FTD -225/45/17 Nitto NeoGen Tires -Vogtland Springs.

TSX Projector Retrofit w/ DDM 55W Kit

224K+ running strong

MAUCY71

Shit that looks hot!! Hard to find a good set of JDM's when I have the money... But, This is definitely something to save for... Nice Mod Homie!!

__________________
Maucy71son
JDM engine swap
Kenwood stealth cassette deck
CF console upgrade
"CHEAP TINT" Gotta Go 08'

Brunzie

I am looking to do or get this mod done in the near future. Where'd you get the aluminum that you placed the carbon fiber over?? I too need my lights to look finished! Gr8 job so far! Can't wait for the diy.

Infamous X

damn i really have to see this car of yours when its done, hot stuff

__________________

More Mods To Come??
JDM Projector Headlights

whats77inaname

Thanks for the positive feedback, everyone. I picked up the aluminum sheeting @ Lowes.

Blood Riot

Hmm, interesting setup, mine is almost similar...but I wont get into more details after I'm done.

mellofelow

Looks good. I'm thinking of doing the same. Can't wait to see the final result.

__________________

STROMUNG end of summer '08 GB

Daddymac117

That's an extremely good idea! But, since the interior plastic housing also has a flat top and bottom, why couldn't you just make the brackets slightly shorter so you could mount the 90 degree brackets to the top and bottom of the inner "chrome" plastic housing, rather than the outer housing? This would have eliminated the possibility of having your rotation off but still left you with the ability to aim them up/down/left/right.

I can't wait until these are done

__________________

whats77inaname

The brackets are as short as you can get. You can't use them with "chrome" housing b/c the way the chrome housing is shaped. They indent on the inside, so these won't fit.

Trust me, I've had a year and a half to think about this *lol*
